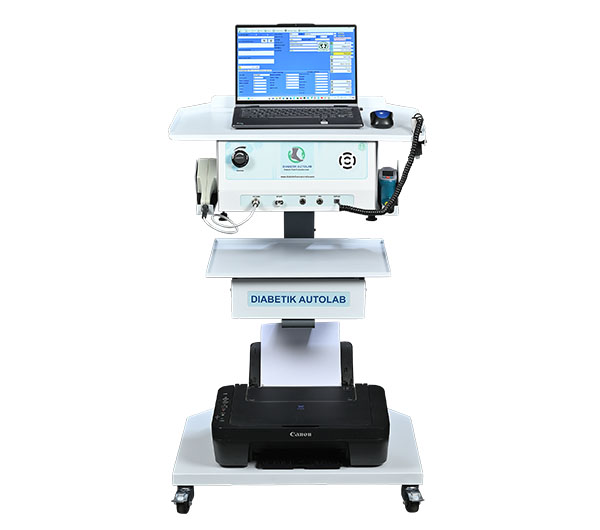

Diabetic Foot Evaluation Lab model DIABETIK AUTOLAB is a fully automated device that helps to screen Peripheral Arterial Disease (PAD) using Ankle Brachial Index (ABI), Toe Brachial Index (TBI) and Doppler Velocity Waveform , Diabetic Neuropathy using the loss of Vibration Perception Threshold, and the loss of protective touch sense with Monofilament 10gm, Plantar Pressure Mapping using Foot Imprinter Harris Mat and assessing the inflammation in the footboy measuring the foot temperature.

Features

• Unidirectional 8MHz Vascular Probe and Photo Plethysmography (PPG) Toe sensor.
• Automated ABI and TBI measurement as per TASC II guidelines.
• Vibration Perception Threshold (VPT) test and loss of protective touch sense with 10gm monofilament.
• Plantar pressure mapping and measurement of temperature in the foot.
• Computer connectivity and software.
• Software generates reports for ABI, TBI, VPT, Monofilament, Foot Pressure and Foot Temperature.

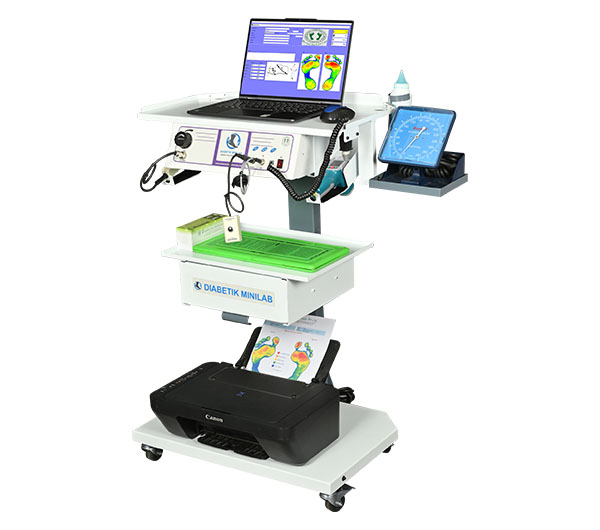

Diabetic Foot Evaluation Lab model DIABETIK MINILAB helps to screen Peripheral Arterial Disease (PAD) using Ankle Brachial Index (ABI), Toe Brachial Index (TBI) and Doppler Velocity Waveform , Diabetic Neuropathy using the loss of Vibration Perception Threshold, and the loss of protective touch sense with Monofilament 10gm, Plantar Pressure Mapping using Foot Imprinter Harris Mat and assessing the inflammation in the footboy measuring the foot temperature.

Features

• Unidirectional 8MHz Vascular Probe and Photo Plethysmography (PPG) Toe sensor.
• ABI and TBI measurement as per TASC II guidelines.
• Vibration Perception Threshold (VPT) test and loss of protective touch sense with 10gm monofilament.
• Plantar pressure mapping and measurement of temperature in the foot.
• Computer connectivity and software.
• Software generates reports for ABI, TBI, VPT, Monofilament, Foot Pressure and Foot Temperature.

Complete Diabetic Foot Assessment. One Device. Zero Complexity.

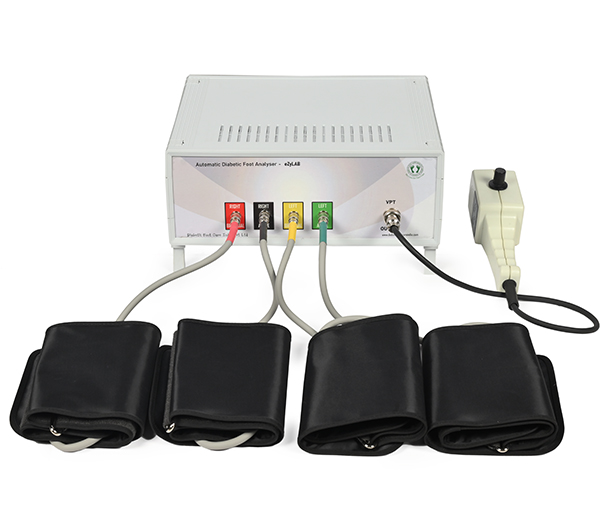

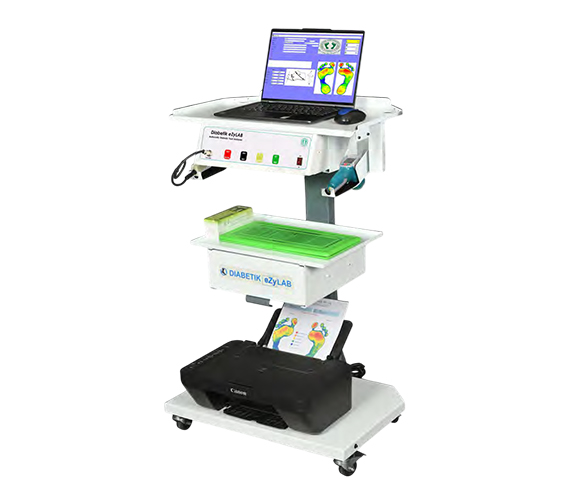

Diabetik eZyLAB integrates five critical diabetic foot screening modalities — Vascular ABI, Neuropathy VPT, Monofilament Testing, Plantar Pressure Mapping, and Foot Thermometry — into a single, fully automated, clinic-ready system. Designed to eliminate the complexity and cost of multi-device workflows, Diabetik eZyLAB delivers comprehensive, clinician-grade foot evaluation without ultrasound probes, specialised training, or multiple instruments.

Diabetik eZyLAB uses a state-of-the-art neural algorithm Oscillometry ABI method — the only truly automated vascular screening approach that requires nothing more than four standard BP cuffs. No Doppler probes. No operator-dependent technique. No compromise on clinical accuracy. From Resting ABI to Exercise ABI, neuropathy assessment to plantar thermometry, Diabetik eZyLAB is the complete diabetic foot lab — in a single compact unit.

Vascular Screening — Oscillometry ABI

• Only 4 standard BP cuffs — no probes or sensors
• Resting ABI & Post-Exercise ABI measurement in 4 minutes
• Systolic & Diastolic BP, MAP, Pulse Pressure — all four limbs
• Automated clinical interpretation and risk classification
